So, let’s use a simple example to demonstrate:

In this graph, we have 4 vertices and 4 edges. The adjacency matrix A has the value Aij = 1 if two vertices are connected, otherwise 0.

Walks of length n

n = 1 is the first scenario, there is one walk between two nodes if they are connected, this is essentially the definition of adjacency matrix.

n = 2, the value of matrix changed, some values go up like (v2,v2) changed from 0 to 3. This is very intuitive. It means there doesn’t exist a path to walk from v2 back to v2 in one step, and there exit 3 paths if given two steps. (2>1>2, 2>2>2, 2>3>2).

n = 3, (v2, v2) now becomes 2, it means there exist 2 paths to leave v2 and return to v2 in 3 steps, which is 2>1>3>2, 2>3>1>2.

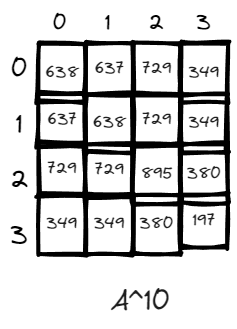

n = 10, just for fun, there exists many more paths when the power is high. V3 has the lowest number of paths likely due to it is a dead end within only one edges connecting it to the rest of the world via v2. And v2 has the highest number of returning to it self because it has the highest degree and is the central node of the graph.

In fact, the matrix multiplication is an exhausted approach to iterate through all the possible permutations of paths, for a unweighted graph, if a path exists, the value of all the edges of that path will be 1 and multiplication of these paths will be 1.

The matrix multiplication approach is basically a breath first tree search

Since matrix multiplication is association, (A*B)*C=A*(B*C), the interpretation is also easy to understand, if there is a matrix storing how many paths there are leaving i to all other nodes in m steps, and another matrix storing all paths returning to j from all other nodes in n steps, you got the total number of paths leaving i return to j in m+n steps.

n being distance if it is first time An(i,j)>0

This is less straightforward, and the previous example of 4 vertices is not a good example to demonstrate this property because everything is so close to each other, so I added another node v4.

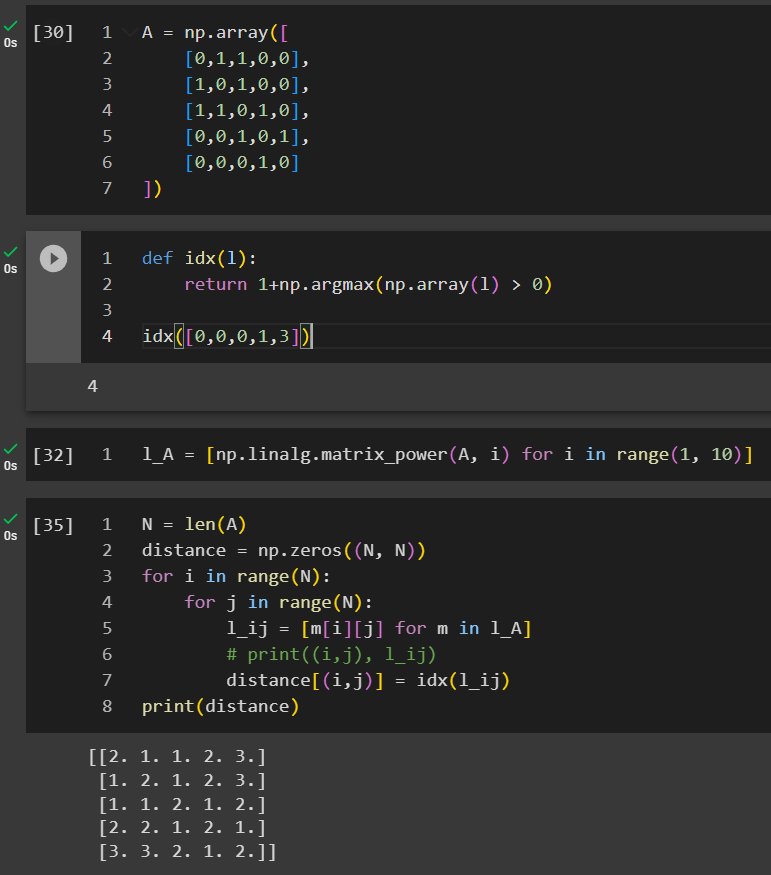

In this example, we created a list of l_A where it stored all the matrices when n increases from 1 to 9. We are looping through all the cells to identify under which n that An_ij first time becomes positive.

In conclusion, adjacency matrix has such interesting properties and it is symbolically simple, however, it is full permutation under the hood and likely won’t scale well to large graphs, so better algorithms or optimization is required given your application.

A key step in preprocessing prior to training a model is to properly split the dataset into training, validation and test datasets. In traditional machine learning, the dataset is usually a dataframe/table like where each column represents a feature and each row represent a record. Due to the simplicity in that structure, the split can be as easy as rolling a dice to determine which records goes to which bucket, you can find the source code for sklearn model_selection.train_test_split. However, the data structure for a graph dataset is different, it contains nodes and edges, in addition, it contains attributes and labels for nodes and edges. For a heterogenous graph, it can be more complex with different types of nodes and edges. Given those challenges, torch_geometric is “battery-included” with a function train_test_split_edges for edge prediction. In the latest documentation, train_test_split_edges is deprecated and is replaced by  torch_geometric.transforms.RandomLinkSplit, in this post, we will only cover train_test_split_edges due to its simple implementation. Before we dive into the specifics, let’s first take a look at popular ways of splitting data and its best practices.

Cora

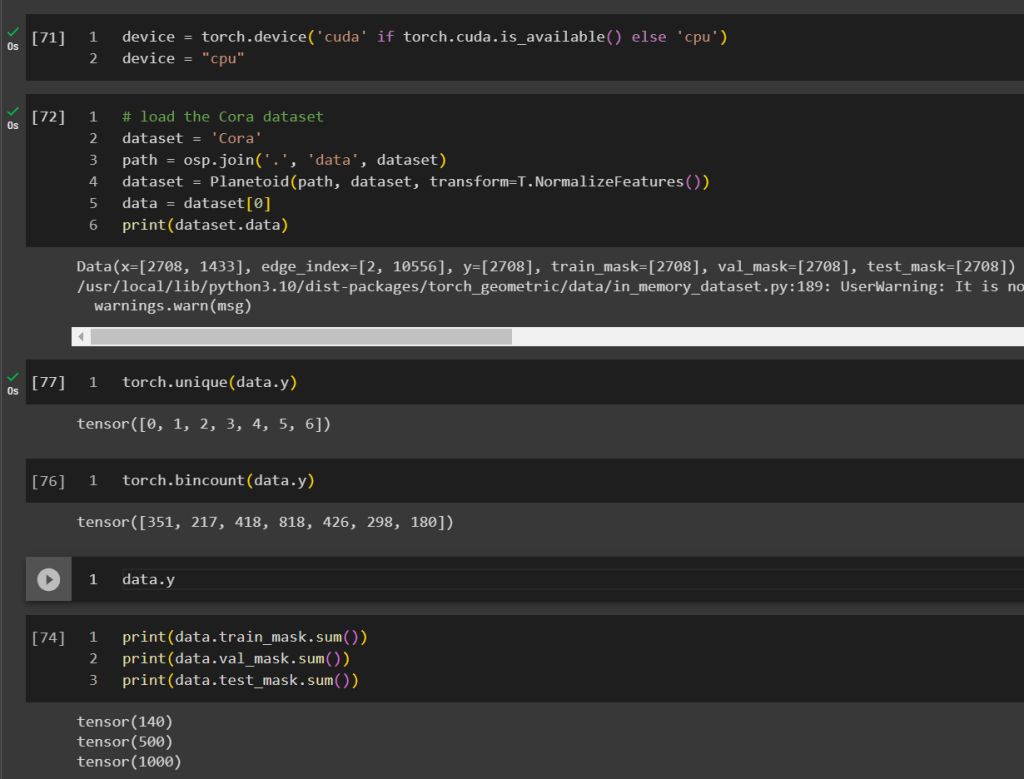

Cora dataset is a popular graph dataset. it describes the citation relationship between scientific publications, there exists 5429 links and 2708 entities and 7 classes representing a domain the publication belong to.

GCN (graph convolutional network) has been considered a bedrock for graph machine learning, in the paper where GCN is being considered invented – semi-supervised classification with graph convolutions networks. The author Kipf and Welling used the cora dataset.

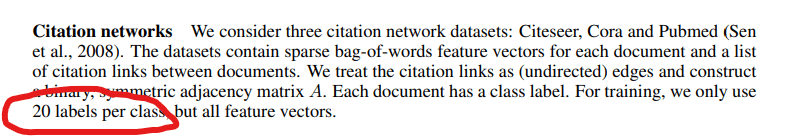

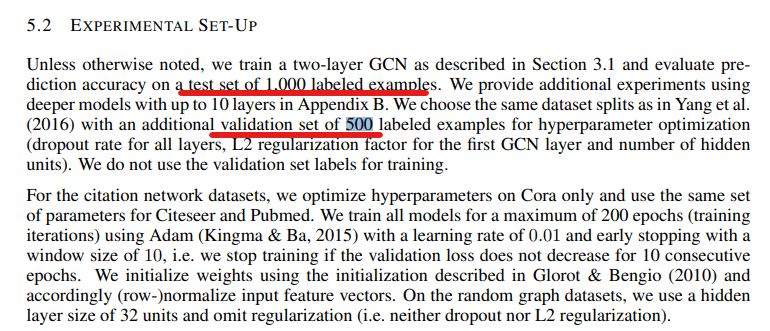

However, instead of using all the links for training, they only picked 20 samples per class, given there are only 7 domains, the training dataset is only 140 records which is merely 2% of the whole dataset. And they used 500 (9%) for validation and 1000 (18%) for testing. The volume of training data can even be considered disproportional comparing to most supervised learning where very majority of the data goes to training if not all.

This is a common practice in semi-supervised learning on graphs, where the goal is often to learn from a small amount of labeled data (the training nodes) and to generalize this to the unlabeled data (the test and unused nodes).

This may not be a perfect example as it is a node classification problem but it is a good conceptual example demonstrating it is critical to preprocess the dataset by splitting them right.

Next, let’s take a look at for a link prediction task, how to split the links into train, validation and test.

train_test_split_edges

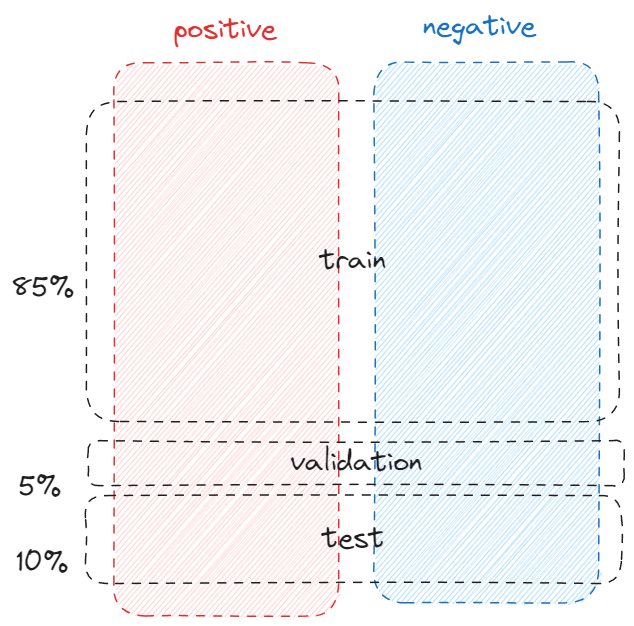

By default, train_test_split_edges splits the dataset into 3 categories, 5% goes validation, 10% goes to test and the rest 85%=1-5%-10% goes to training. However, the link prediction is a binary classification by nature, so we need to have positive cases (relationship exists between two nodes) and negative cases (relationship doesn’t exist between two nodes).

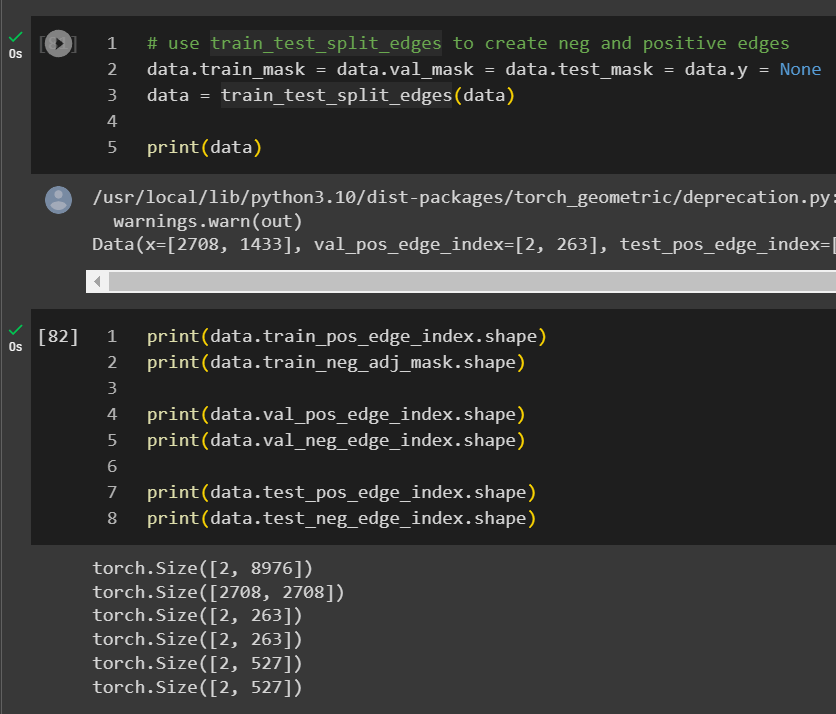

If the dataset is already loaded into torch_geometric, you can just run train_test_split_edges on the data object.

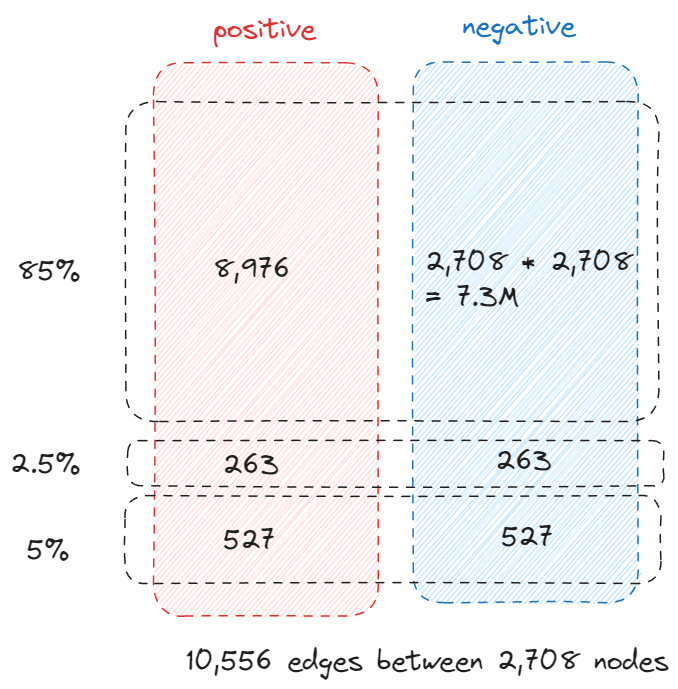

An interesting observation is that the validation and test edges is 2.5% and 5% of the total edges instead of the 5% and 10% we previously mentioned, soon you will know why.

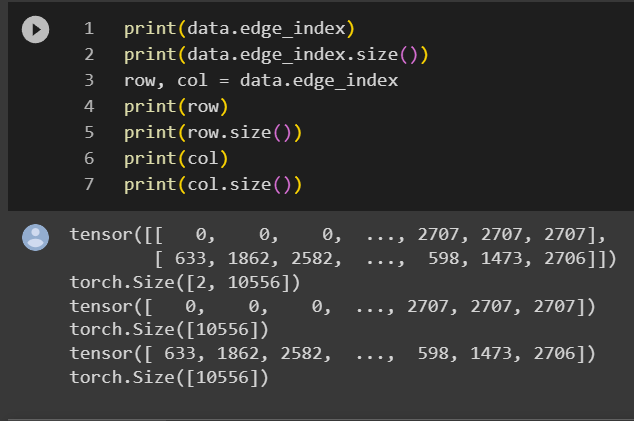

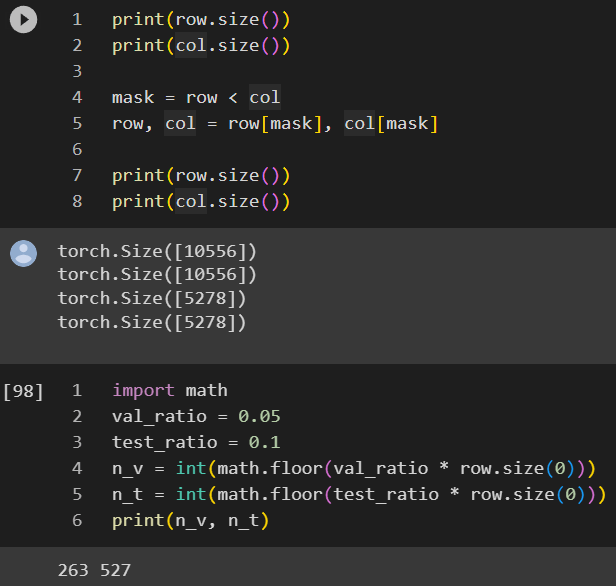

row stores all the source node of all the links and col stores all the destination nodes. They have the same size as the number of links which is 10,556. Consider there are 2,708 nodes, technically the adjacency matrix should have the size of 7.3M, 10,556 is only 0.14% of 7.3 million so storing the links in this way (COO – coordinate format) is very efficient.

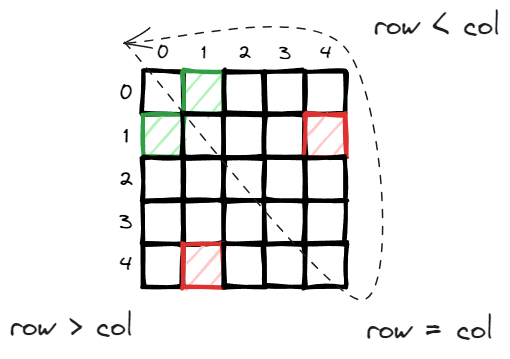

in an undirected graph, you can consider either direction and it is efficient to consider only half of the adjacency matrix, in this case, the top right upper triangle (diagonal is self directed link which can be ignored).

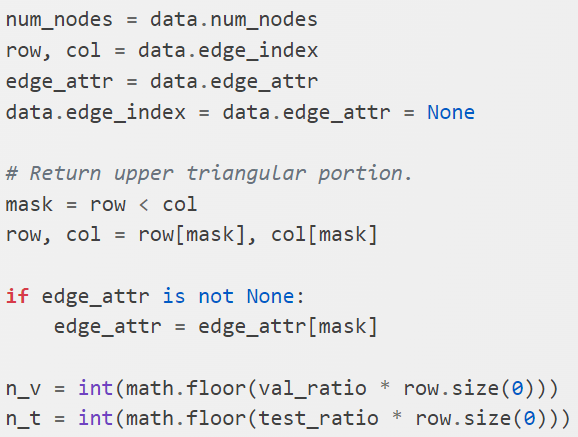

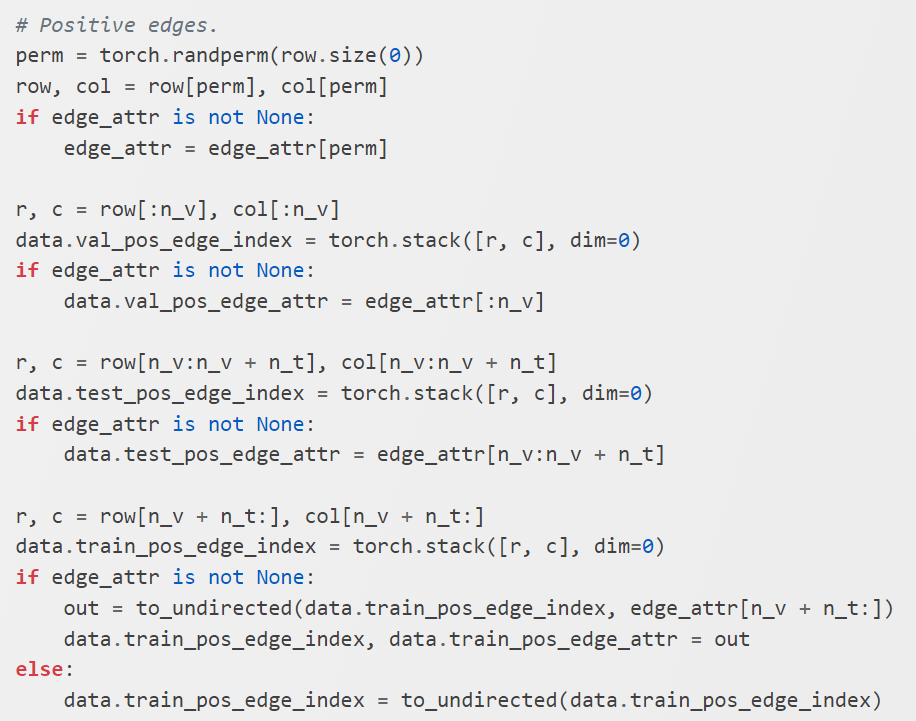

Below is the implementation, the concept is very straightforward and in addition to the index for train/validation/test, if the edge attribute is available, it is also stored in the corresponding edge_attribute.

The negative samples are handled differently due to the fact that what is not there implicitly considered negative samples, and it is usually 100x bigger if not 1000x than the positives samples.

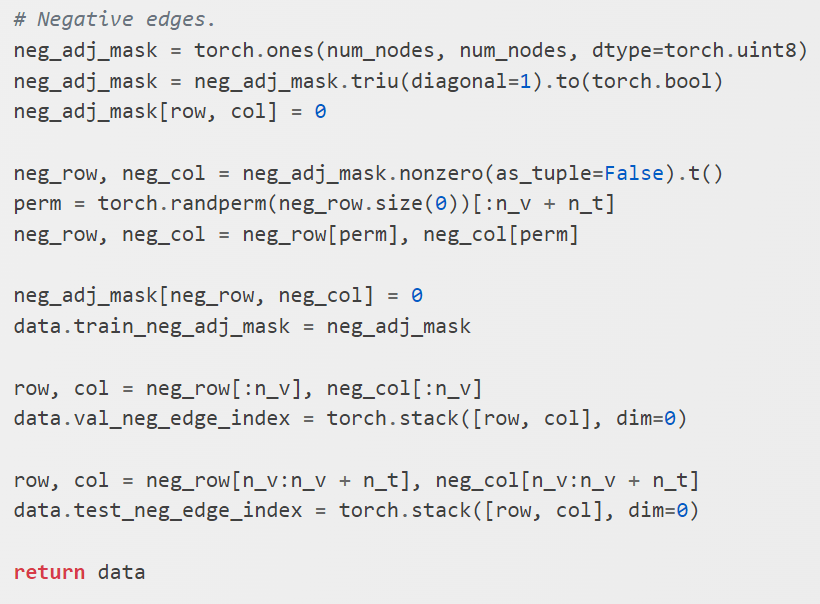

First, they construct a full adjacency matrix where each cell has the value of one. And then mark all the existing edges as 0 and find all the remaining ones as negative samples. Then it extracts all the indices using tensor.nonzero.

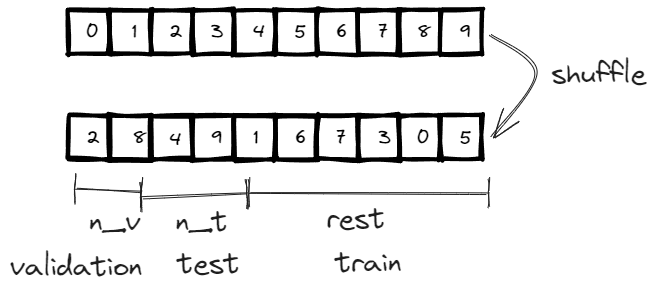

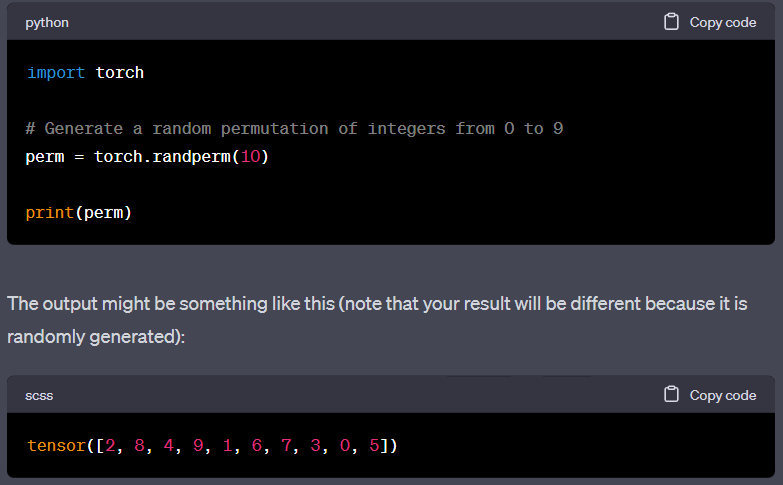

From the negative samples, it first extracts n_v + n_t many samples as negative samples which corresponds to the same number of samples for positive validation set and test set. After that, it update the neg_adj_mask to exclude those allocated samples.

This is the beauty of this technique. There are significant amount of negative training samples. Instead of storing them like positive samples or negative validation set and test set, we decide to keep track of the huge population by using the neg_adj_mask instead of COO format, this way.

negative sampling is an important step to identify negative training datasets that can be used for training and generate embeddings. In fact, it is such an important engineering practices that otherwise, it will be extremely computational difficult to calculate embeddings in simple techniques like randomwalk and others.

In the lecture 3.2-random walk approaches for node embeddings by Prof. Leskovec, he explained really well how random walk requires a normalization step that in theory requires V^2 computational complexity but can be approximated using negative sampling to k * V (in practice, k can ranges from 5 ~ 20).

The concept of negative sampling is not limited to graph, it is used in NLP – word2vec explained.

In order to do negative sampling in pyg, you can just call the negative_sampling function under torch_goemtric.utils. The only input it required is the edge_index which is a tensor containing the pairwise edges between from and to nodes.

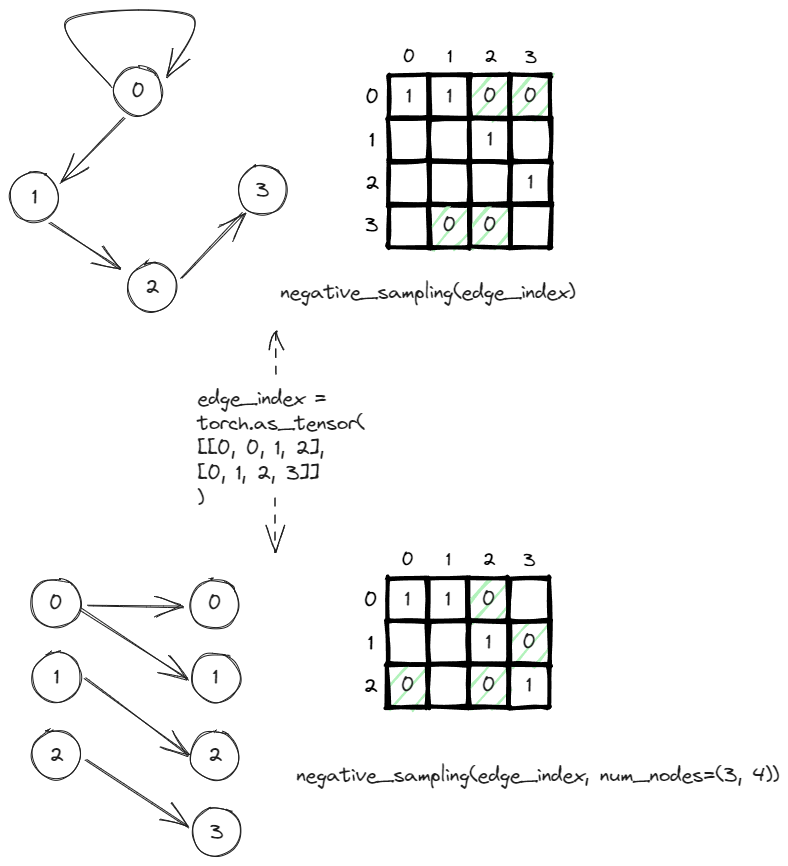

In this example, the graph can be represented by the adjacency matrix. It is sparse and usually sparse because there exist only 4 edges out of 16 (V^2) possible edges. The rest of the nodes are implicitly negatives edges, edges that don’t and shouldn’t exist. The negative_sampling as default will return the same number of negative edges as the number of positives edges. In this case, it returns the four zeros (highlighted in green).

Also, if you pass a tuple (n,m) to the num_nodes, it indicates a graph is a bipartite graph where the number of sources nodes is n and the number of destination nodes is m. The adjacency matrix will be adjusted to n*m instead of n^2. The negatively sampling logic remain the same, it still returns 4 negatives edges that should not exist.

There is also a batch negative_sampling, the only difference is that you can pass in a batch parameter in order to distinguish which graph certain edges belong to. The negative sampling will only occur within the same graph instead of cross graphs.

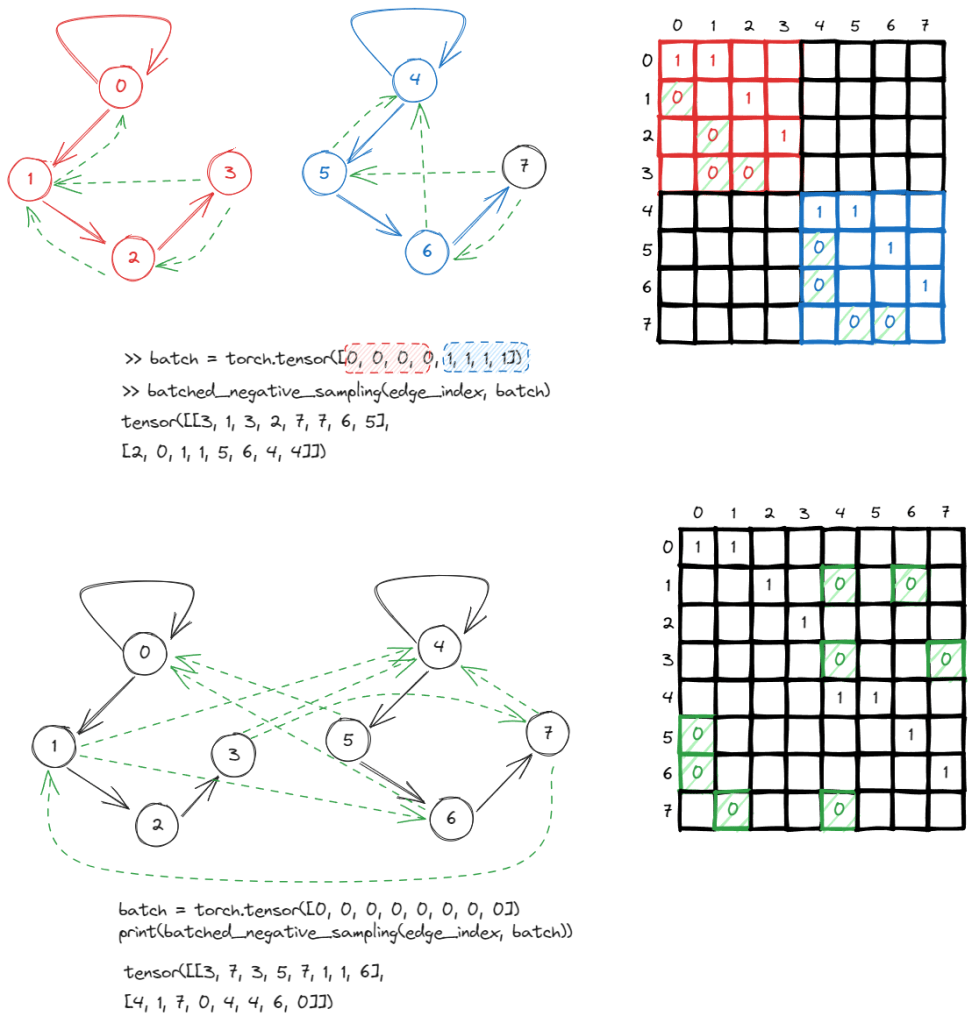

To demonstrate, to treat the two graphs as one graph, you can simply ignore the the batch parameter and immediately, one start observing negative samples crossing graphs.

I found the chatgpt’s explanation easier to understand.

“

In your example, the batch tensor is torch.tensor([0, 0, 0, 0, 1, 1, 1, 1]). It means you have a batch of two graphs. The first four nodes (indices 0, 1, 2, 3) belong to the first graph (batch 0), and the second four nodes (indices 4, 5, 6, 7) belong to the second graph (batch 1).

So, when you’re using batched_negative_sampling(edge_index, batch), this function will generate negative edges (non-existing edges used for training graph learning models) while making sure the nodes of these negative edges are within the same graph. In other words, it will not generate a negative edge between nodes from different graphs.

“
